Fuel Injection Hose 5/16" ID x 10'
(Pack of
1.0)

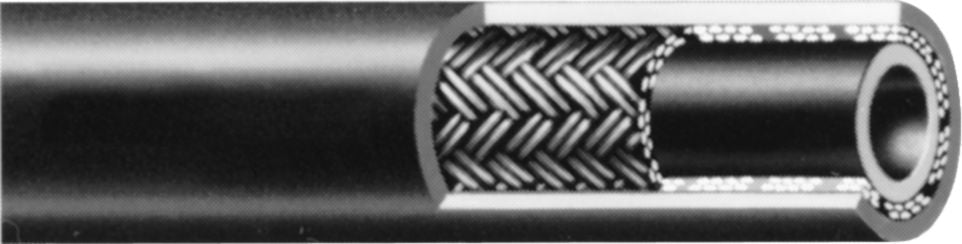

• Special minimum .030" inner liner resists sour gas, methanol, ethanol, additives, and all known fuels that can weaken and crack standard fuel lines
• Special liner virtually eliminates fuel evaporation through the hose
• High-strength inner tube for added burst resistance
• Packaged in 10-foot rolls
• Exceeds all current OEM and SAE specifications for fuel line hose
• Exceeds GM specifications for fluoroelastomer fuel line No. 6131-M
• Exceeds Chrysler fuel line specification EFM-EFI 18519
• High tensile braid reinforcement for burst strength that exceeds 900 PSI to easily handle high-pressure electronic fuel injection systems
• Extra tough outer cover resists abrasion, oil, grease, fuels, ozone, coolants from –30°F to +302°F (–34°C to +150°C)
• Required for higher pressure, higher temperature, electronic fuel injection systems on GM, Chrysler and imports – offers extra strength for carbureted systems
Frequently Bought Together
Silicone Heater and Radiator Hose 13/16" OD
Couldn't load pickup availability
EH22640
Couldn't load pickup availability
EH22606
Couldn't load pickup availability
DOT Compression Connector Male Brass 5/8 x 1/2"
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
Constant Torque Hose Clamp SS 1-3/4 to 2-5/8"
Couldn't load pickup availability
Hose Clamp 301 SS 3-1/16 to 4 In"
Couldn't load pickup availability
Silicone Heater and Radiator Hose 1-7/16" OD
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/16"
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
Non-Chlorinated Brake Parts Cleaner 14oz
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 3/4"
Couldn't load pickup availability
Product Description
• Special minimum .030" inner liner resists sour gas, methanol, ethanol, additives, and all known fuels that can weaken and crack standard fuel lines• Special liner virtually eliminates fuel evaporation through the hose
• High-strength inner tube for added burst resistance
• Packaged in 10-foot rolls
• Exceeds all current OEM and SAE specifications for fuel line hose
• Exceeds GM specifications for fluoroelastomer fuel line No. 6131-M
• Exceeds Chrysler fuel line specification EFM-EFI 18519
• High tensile braid reinforcement for burst strength that exceeds 900 PSI to easily handle high-pressure electronic fuel injection systems
• Extra tough outer cover resists abrasion, oil, grease, fuels, ozone, coolants from –30°F to +302°F (–34°C to +150°C)
• Required for higher pressure, higher temperature, electronic fuel injection systems on GM, Chrysler and imports – offers extra strength for carbureted systems
Technical Specifications
| Item#: | P81419 |
|---|---|
| Type | Fuel Injection Hose |
| I.D. | 5/16 " |
| Hose Cover Material | ECO |
| Hose Reinforcement | Multi-Fiber Braid |
| Inner Tube Material | Fluoroelastomer Veneer |
| Temperature | -30F to +275F |
| Industry Rating 1 | SAE 30R9 |
| UNSPSC #: | 25170000 |
| TAA Compliant: | No |
| Weight: | 1.55 lb |
