Horizon 300 Air/Multipurpose Hose 1" Red
(Pack of
450.0)
An economical air and water hose, Horizon® is used for a wide range of industrial, construction, and agricultural applications.

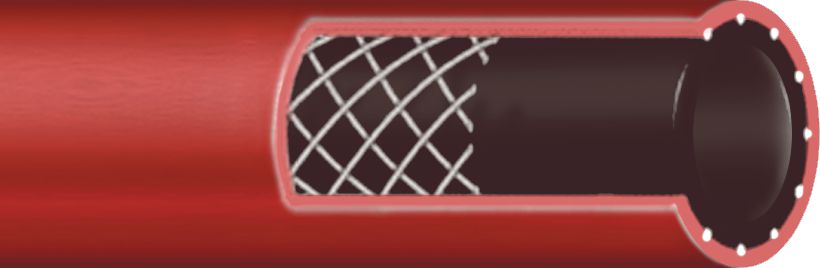

Construction
Tube: Versigard® synthetic rubber, RMA Class C (limited oil resistance)
Reinforcement: Spiral synthetic yarn, 2" is braided
Cover: Black, Red, Yellow, Green or Blue Versigard® synthetic rubber
Temperature: –40°F to +190°F (–40°C to +88°C)
Frequently Bought Together
Rubber Air Hose 3/4" x 15
Couldn't load pickup availability
Avagard Rubber Air Hose Bulk 1/4' x 300'
Couldn't load pickup availability
Bulk Air Hose 1/2 x 300'
Couldn't load pickup availability
Avagard Rubber Air Hose Assembly 3/8" x 100'
Couldn't load pickup availability
180° Hose Reel Swivel Mount HRS180
Couldn't load pickup availability

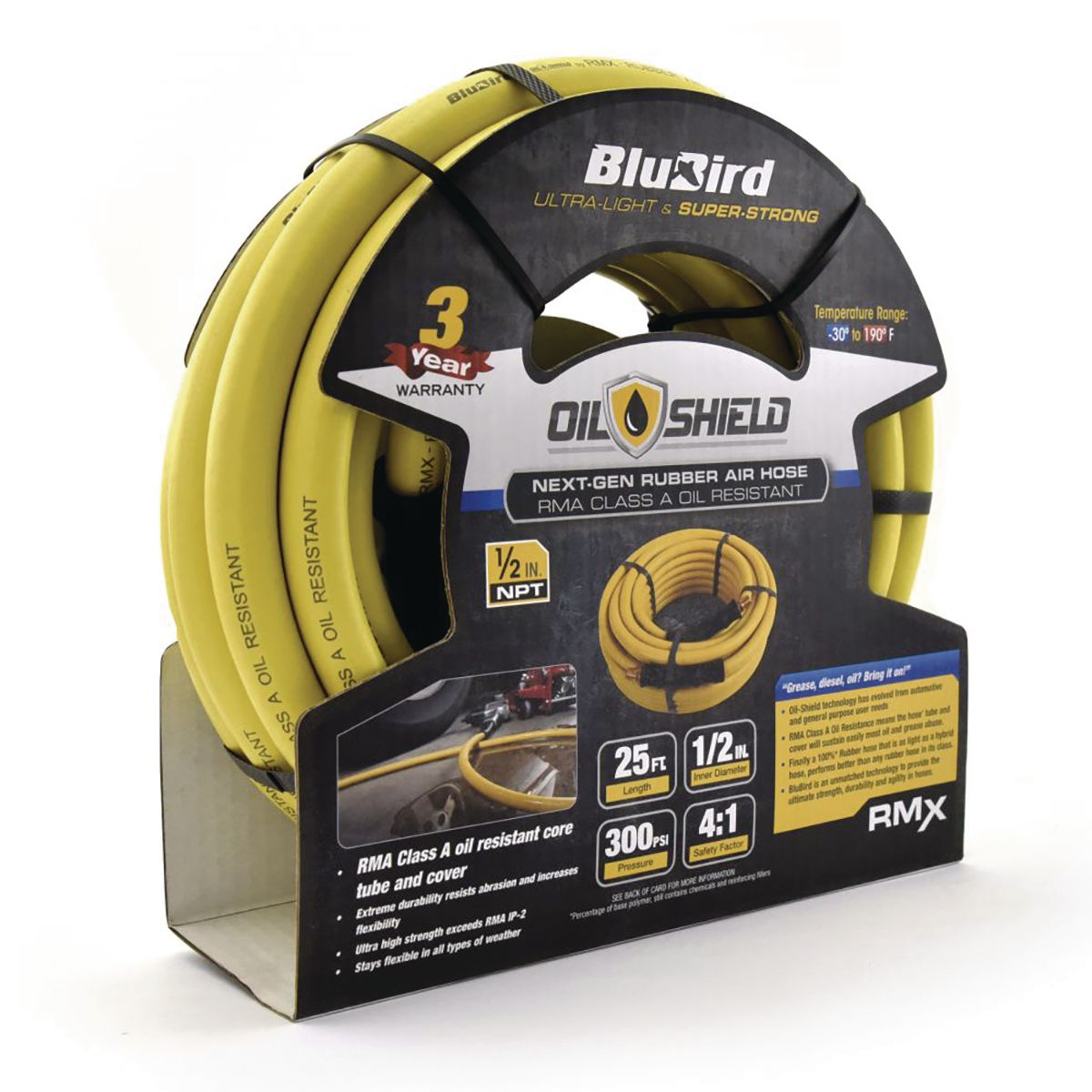

OilShield Rubber Air Hose Assembly 1/2" x 50'
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 13/16 to 1-1/2"
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
DOT Elbow Male 90° Brass 3/8 x 3/8-18
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
12" Auto-Adjust Pliers
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Product Description
An economical air and water hose, Horizon® is used for a wide range of industrial, construction, and agricultural applications.Construction
Tube: Versigard® synthetic rubber, RMA Class C (limited oil resistance)
Reinforcement: Spiral synthetic yarn, 2" is braided
Cover: Black, Red, Yellow, Green or Blue Versigard® synthetic rubber
Temperature: –40°F to +190°F (–40°C to +88°C)
Technical Specifications
| Item#: | 23264 |
|---|---|
| Industrial/Hydraulic | Industrial |
| Type | Air and Multipurpose |
| Category/Performance | Better |
| Industry Rating | Inner Tube RMA Class C (Limited Oil Resistance) |
| Manufacturer Series Number | 569-557 |
| Manufacturer Series Name | Horizon 300 |
| I.D. | 1 " |
| Dash Size | 1 (-16) |
| Working Pressure | 300 PSI |
| Hose O.D. | 1.48 " |
| Inner Tube Material | Versigard Synthetic Ruber |
| Hose Reinforcement | Spiral Synthetic Yarn |
| Hose Cover Material | Versigard Synthetic Rubber |
| Temperature | -40F to +190F |
| Color | Red |
| Size | -16 x 450 |
| Weight per Foot | 0.86 |
| Material Number | 20026992 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
