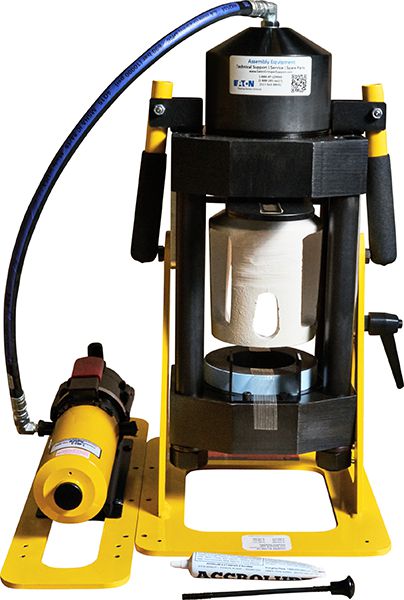

Portable Air/Hydraulic Pump Package with Press
(Pack of
1.0)
Make factory-type hose assemblies anywhere with portable T-480 Pump systems that include both the press and pump. Expect factory-quality custom hose assemblies, and ensure that vital operations remain productive. Choose from three systems: Coll-O-Crimp® Press T-480 combined with electric pump, hand pump or air/hydraulic pump.
• Overall press capacity from 3/16" single fiber braid through 1-1/4" 6-spiral hose (additional tooling required)
• Compact size: 10-1/2"W x 22-1/2"H x 14"D
• Note: To crimp 1/4" to 1-1/4" one- and two-braid Coll-O-Crimp® hose, order Adapter Ring T-420-25, Item No. 63689, and corresponding T-400 Series spacer rings and U-Series collets
• To crimp 1/2" to 1-1/4" 4-spiral Coll-O-Crimp® hose, order 430 U-Series collets*
Tooling Kit contents:
1/2" 430U-Series Collet T-420-4CN, Item No. 63690
3/4" 430U-Series Collet T-420-5CN, Item No. 63691
1" 430U-Series Collet T-420-6CN, Item No. 63692
1-1/4" 430U-Series Collet T-420-7CN, Item No. 63693
Black Spacer Ring T-400-10, Item No. 51384
Silver Spacer Ring T-400-11 Item No. 51385
Yellow Spacer Ring T-400-62, Item No. 56269
Adapter Ring for T-400 U-Series Collets T-420-25, Item No. 63689
1/4" U-Series Collet T-400-2C, Item No. 51379
3/8" U-Series Collet T-400-3C, Item No. 51380
1/2" U-Series Collet T-400-4C, Item No. 51381
3/4" U-Series Collet T-400-5C, Item No. 51382
1" U-Series Collet T-400-6C, Item No. 51383
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Die Cage FT1382-275-M370
Couldn't load pickup availability
Spacer Ring T-400-121C
Couldn't load pickup availability
Spacer Ring ET425SR-225D
Couldn't load pickup availability
Face Seal O-Ring Buna-N 0.364 x 0.07"
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 13/16-16
Couldn't load pickup availability
Face Seal O-Ring Buna-N 0.614 x 0.07"
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 3/8-18
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
Hose Clamp 301 SS 3/4 to 1-3/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Product Description
Make factory-type hose assemblies anywhere with portable T-480 Pump systems that include both the press and pump. Expect factory-quality custom hose assemblies, and ensure that vital operations remain productive. Choose from three systems: Coll-O-Crimp® Press T-480 combined with electric pump, hand pump or air/hydraulic pump.• Overall press capacity from 3/16" single fiber braid through 1-1/4" 6-spiral hose (additional tooling required)
• Compact size: 10-1/2"W x 22-1/2"H x 14"D
• Note: To crimp 1/4" to 1-1/4" one- and two-braid Coll-O-Crimp® hose, order Adapter Ring T-420-25, Item No. 63689, and corresponding T-400 Series spacer rings and U-Series collets
• To crimp 1/2" to 1-1/4" 4-spiral Coll-O-Crimp® hose, order 430 U-Series collets*
Tooling Kit contents:
1/2" 430U-Series Collet T-420-4CN, Item No. 63690
3/4" 430U-Series Collet T-420-5CN, Item No. 63691
1" 430U-Series Collet T-420-6CN, Item No. 63692
1-1/4" 430U-Series Collet T-420-7CN, Item No. 63693
Black Spacer Ring T-400-10, Item No. 51384
Silver Spacer Ring T-400-11 Item No. 51385
Yellow Spacer Ring T-400-62, Item No. 56269
Adapter Ring for T-400 U-Series Collets T-420-25, Item No. 63689
1/4" U-Series Collet T-400-2C, Item No. 51379
3/8" U-Series Collet T-400-3C, Item No. 51380
1/2" U-Series Collet T-400-4C, Item No. 51381
3/4" U-Series Collet T-400-5C, Item No. 51382
1" U-Series Collet T-400-6C, Item No. 51383
Technical Specifications
| Item#: | 63683 |
|---|---|
| Category | Crimper System |
| Description | Portable Air/Hydraulic Pump with Press |
| UNSPSC #: | 27121500 |
| TAA Compliant: | Yes |
| Weight: | 135.0 lb |
