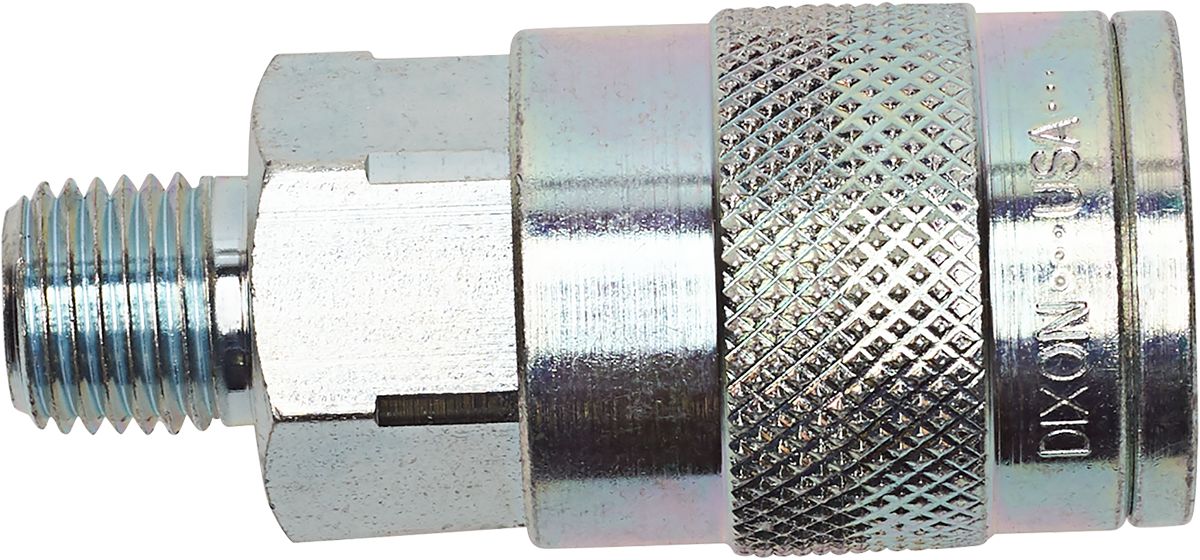

Quick Disconnect Coupler Steel 3/8" x 1/4-18
(Pack of
2.0)
These heavy-duty sleeve-type couplers feature a built-in sleeve guard to minimize accidental disconnect. The plugs feature a ball swivel design to enhance air line flexibility and help prevent repetitive motion injury. Couplers feature stainless steel coupling balls and springs for corrosion resistance.
• Maximum working pressure: 300 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Tru-Flate Design
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 8-158
Frequently Bought Together
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 5/16" x 3/8-18
Couldn't load pickup availability
Hose Barb Hose Mender Brass 5/8 x 5/8"
Couldn't load pickup availability
Hose End Brass 1/4" x 1/4-18
Couldn't load pickup availability
Hex Head Plug Brass 3/8-18 Male NPT
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
Hose Barb Brass 3/4" x 3/4-14
Couldn't load pickup availability
Hose Barb Hose Mender Brass 3/4 x 3/4"
Couldn't load pickup availability
Hose Barb Brass 3/8" x 3/8-18
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
These heavy-duty sleeve-type couplers feature a built-in sleeve guard to minimize accidental disconnect. The plugs feature a ball swivel design to enhance air line flexibility and help prevent repetitive motion injury. Couplers feature stainless steel coupling balls and springs for corrosion resistance.• Maximum working pressure: 300 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Tru-Flate Design
Technical Specifications
| Item#: | 57449 |
|---|---|
| Description | Heavy-Duty Quick Disconnect |
| Type | Coupler |
| Style | Tru-Flate |
| Body Size | 3/8 " |
| Thread Style | Male NPTF |
| Thread Size | 1/4-18 |
| Working Pressure | 300 PSI |
| Material | Steel |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.61 lb |
