Home Hardware Screw Pin Anchor Shackle, 3/8", 2,000 lb WLL
Hardware

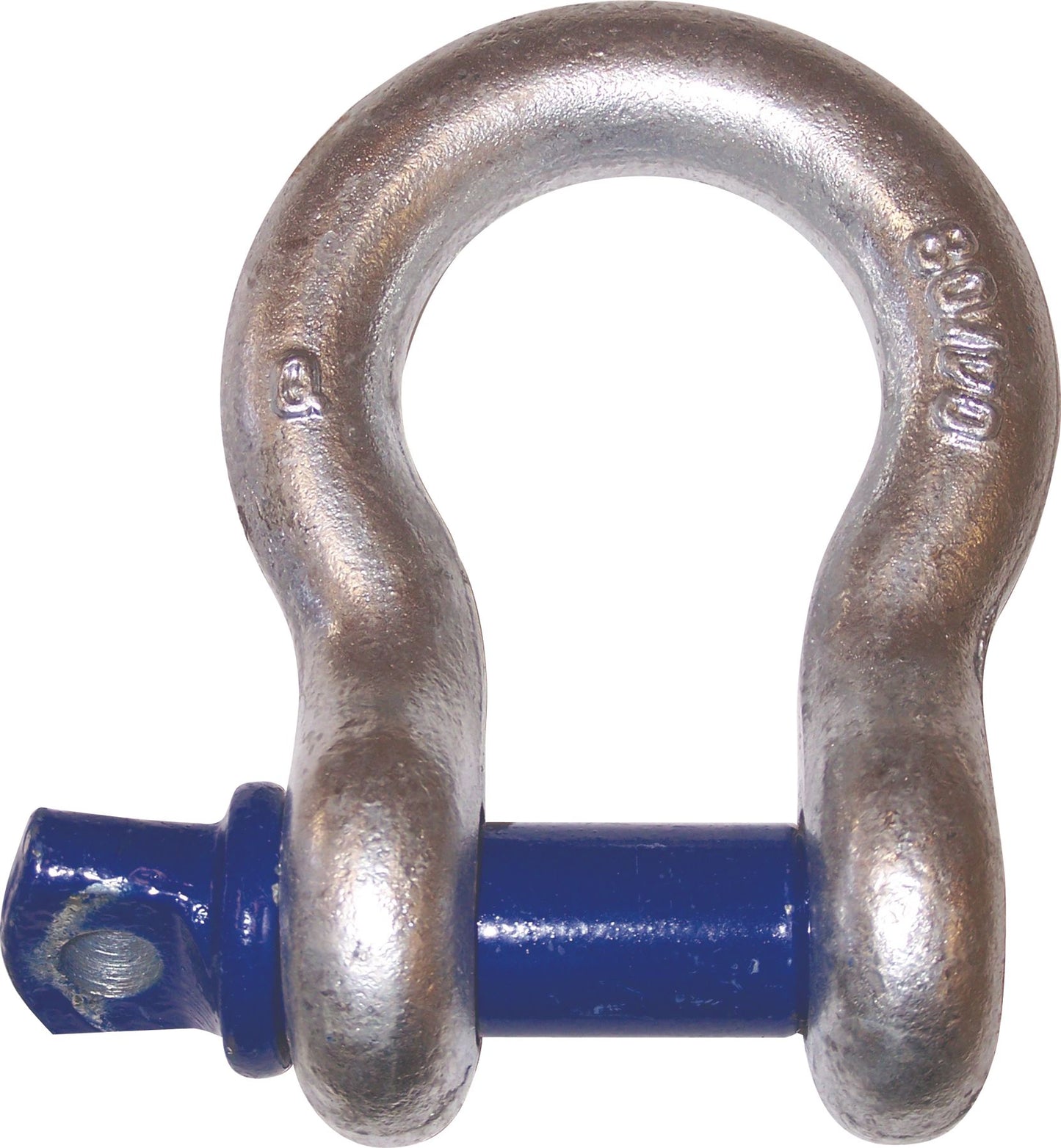

Screw Pin Anchor Shackle, 3/8", 2,000 lb WLL
(Pack of 2.0)

Lawson Products

Screw Pin Anchor Shackles are ideal for those applications where frequent pin removal is needed.
• Hot-dipped galvanized to ASTM A153
• Proof load at 2 times Working Load Limit
• Ultimate load at 6 times the Working Load Limit
• Meets Federal Specification RR-C-271F, Type IVA, Grade A, Class 2
CAUTION: Do not exceed working load limits.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog Page#: 15-21

Frequently Bought Together


Shoulder Eyebolt, Machinery, Stainless Steel, 3/4" x 2"

Item#: 1442370

Turned Eyebolt, Zinc-Plated, 1/4" x 5"

Item#: 1442079

Eye Bolt with Nut, Stainless Steel, 3/8"-16, 1,200 lb WLL

Item#: 1427912

ShelfMaxâ„¢ Bin, Blue, 11-5/8" x 8-3/8" x 6"

Item#: 1387957

AkroBin®, Blue, 10-7/8" x 5-1/2" x 5"

Item#: 1593297

Super-Size AkroBin®, Yellow, 20" x 12-3/8" x 8"

Item#: 1387670

Screw Pin Anchor Shackle, 1/2", 6,000 lb WLL

Item#: 1429885

Bolt, Nut and Cotter Anchor Shackle, 5/8", 9,000 lb WLL

Item#: 1429919

Screw Pin Anchor Shackle, 1/2", 4,000 lb WLL

Item#: 1424882

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512

Lock Washer Alloy Steel 3/8"

Item#: A530

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: FA88445

Product Description

Screw Pin Anchor Shackles are ideal for those applications where frequent pin removal is needed.
• Hot-dipped galvanized to ASTM A153
• Proof load at 2 times Working Load Limit
• Ultimate load at 6 times the Working Load Limit
• Meets Federal Specification RR-C-271F, Type IVA, Grade A, Class 2
CAUTION: Do not exceed working load limits.

Technical Specifications

Item#: 1424880
Type Anchor Shackle
Style Screw Pin
Body Material Carbon Steel
Finish Galvanized
Size 3/8 "
Working Load Limit 2,000 lb
Pin Diameter 7/16 "
Pin Material Alloy Steel
Width Between Eyes 21/32 "
Bow Width 15/16 "
Depth 1-7/16 "
UNSPSC #: 31162803
TAA Compliant: No
Weight: 0.68 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Suggested Products

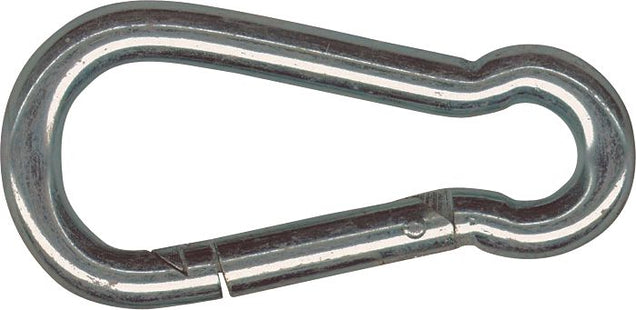

Spring Link, 5/16", 350 lb WLL, Zinc
