Security Anchor Steel 3/8 x 5"
(Pack of 10.0)

Lawson Products

• Resistant to tampering and vibration

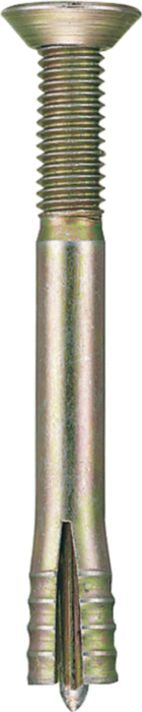

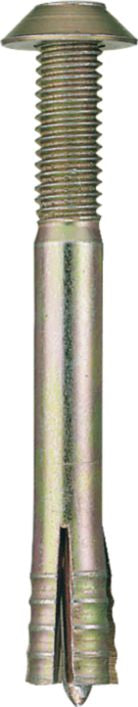

• Reversible nut for round head or flat head style
• Carbon steel anchor body and nut with hardened setting pin
• High pull-out and shear strength
• Made in USA
• For use in all poured concrete and brick materials
• Applications: Security door frames, motion detectors, lock boxes, money meters, fencing, vending machines, burglar bars, benches, light fixtures, playground equipment, cash machines, stadium seating, mailboxes, prison furniture
1. Drill hole of sufficient depth, using same diameter bit as anchor being installed.
2. Select head style (round or flat), then turn security nut flush with the top of anchor. Insert anchor into pre-drilled hole.

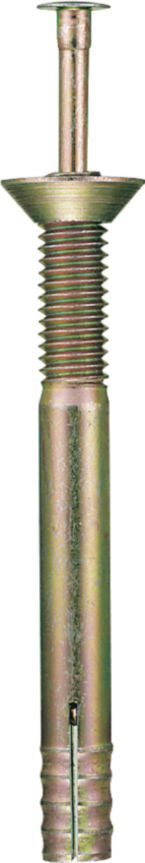

3. Drive in setting pin with hammer until flush. Use a 2 to 3 lb. hammer for small anchors and a 4 to 5 lb. hammer for medium and large anchors.
4. Slotted anchor base expands into concrete. Anchor is now properly set.

Check Availability

Quantity

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog Page#: 6-25

Frequently Bought Together

Masonry Anchor Assortment 243Pcs

Light-Medium Duty Anchor Assortment 555Pcs

Hollow Wall Screw Anchor Assortment 196Pcs

Expansion Shield Anchor 1/2"

Pin Drive Expansion Anchor Steel 3/4 x 6"

Expansion Shield Anchor Alloy Steel 1/4"

USS Flat Washer Thru-Hardened Steel 1/2"

Lock Washer Non-Linking Steel 3/8"

SAE Flat Washer Thru-Hardened Steel 3/4"

Non-Chlorinated Brake Parts Cleaner 14oz

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

PTO Pin Lock 1/4 x 2-1/2"

Product Description

• Resistant to tampering and vibration
• Reversible nut for round head or flat head style
• Carbon steel anchor body and nut with hardened setting pin
• High pull-out and shear strength
• Made in USA
• For use in all poured concrete and brick materials
• Applications: Security door frames, motion detectors, lock boxes, money meters, fencing, vending machines, burglar bars, benches, light fixtures, playground equipment, cash machines, stadium seating, mailboxes, prison furniture
1. Drill hole of sufficient depth, using same diameter bit as anchor being installed.
2. Select head style (round or flat), then turn security nut flush with the top of anchor. Insert anchor into pre-drilled hole.
3. Drive in setting pin with hammer until flush. Use a 2 to 3 lb. hammer for small anchors and a 4 to 5 lb. hammer for medium and large anchors.
4. Slotted anchor base expands into concrete. Anchor is now properly set.

Technical Specifications

Item#:	59631
Anchor Size	3/8 "
Length	5 "
Type	Security Anchor
Material	Carbon Steel
Finish	Zinc
Size	3/8X5 "
UNSPSC #:	31162101
TAA Compliant:	Yes
Weight:	1.66 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
