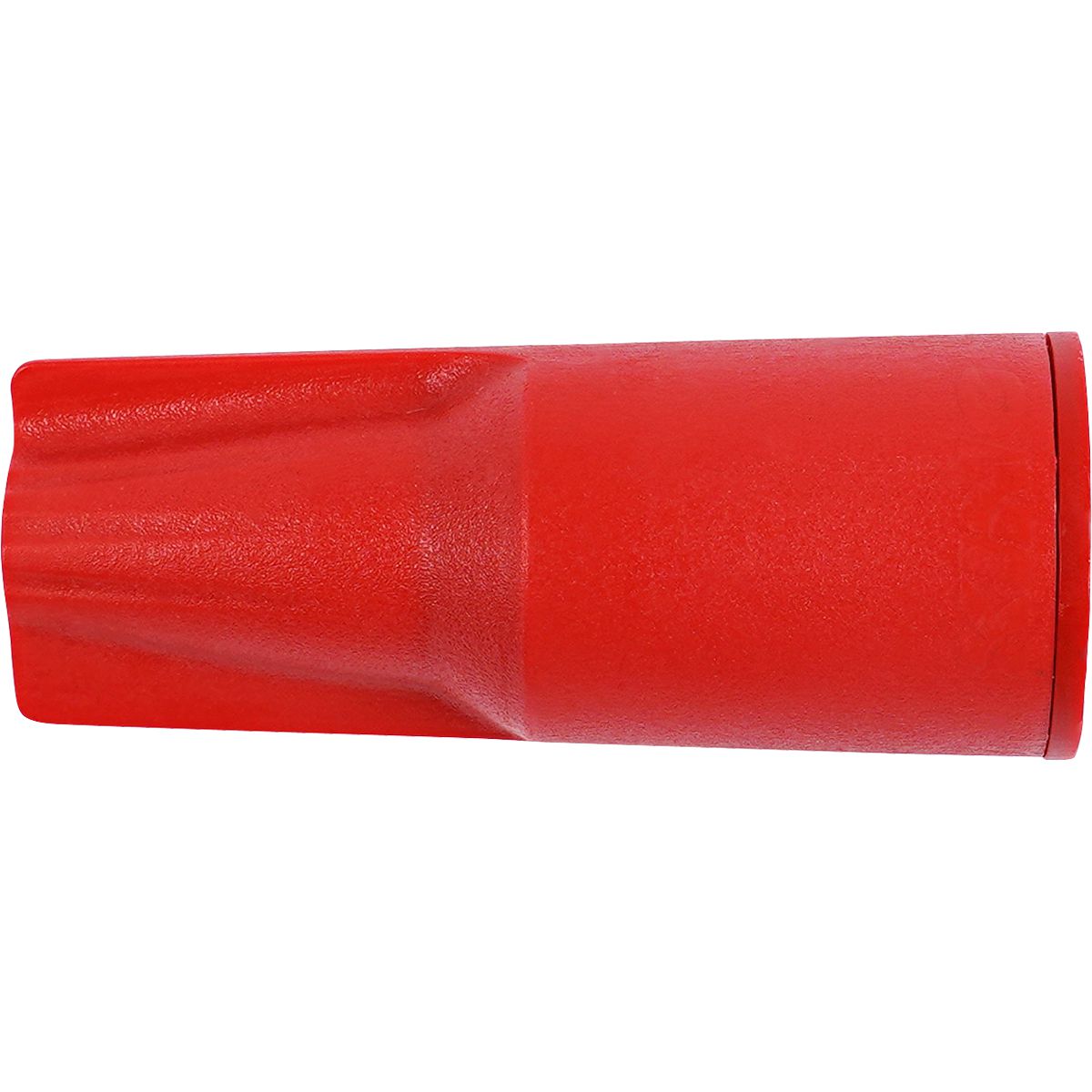

Watertight Wire Nuts
(Pack of
25.0)
• Moisture and corrosion resistant wire connections
• Sealant provides 500 volts of insulation for every 1 mil of thickness
• Can be used in watertight boxes to further protect against condensation, ice formation, fumes and flooding
• The unique resin outer shell and modified silicone fill provide excellent protection against most chemical environments including ammonia, acids, salts and waste material
• Great in damp and wet areas, can be submersed but not continuously
Frequently Bought Together
Cable Tie 13.38" Black
Couldn't load pickup availability
DT Series Socket Wedgelock 13A 2 Contacts
Couldn't load pickup availability
Connector Housing 20A 2-Wire Tower
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Clear
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Term-A-Nut Pigtail Connector 18 to 12 AWG
Couldn't load pickup availability
Wire Nut Twister 22-12 AWG Tan
Couldn't load pickup availability
Watertight Wire Nuts 4 - 8 Gauge/2 - 12 Gauge Yellow
Couldn't load pickup availability
Wire Nut Twister 22-12 AWG Tan
Couldn't load pickup availability
Watertight Wire Nuts 4 - 8 Gauge/2 - 12 Gauge Yellow
Couldn't load pickup availability
Cushion-Grip Wire Connector Blue/Gray
Couldn't load pickup availability
Product Description
• Moisture and corrosion resistant wire connections• Sealant provides 500 volts of insulation for every 1 mil of thickness
• Can be used in watertight boxes to further protect against condensation, ice formation, fumes and flooding
• The unique resin outer shell and modified silicone fill provide excellent protection against most chemical environments including ammonia, acids, salts and waste material
• Great in damp and wet areas, can be submersed but not continuously
Technical Specifications
| Item#: | DY20720050 |
|---|---|
| Type | Wire Nut |
| Wire Gauge | 14 (2 Wire) to 12 (4 Wire) AWG |
| Voltage Rating | 600V Maximum for Building Wire 1,000V Maximum in Signs and Fixtures |
| Color | Red |
| Temperature Range | 221 °F |
| Celcius Temperature Range | 105 C |
| Length | 1-3/4 " |
| O.D. | 13/16 " |
| Approvals | CSA C22.2 |
| Style | Water Tight Wire Nuts |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.605 lb |
