Home Hardware Hoist Ring, Heavy Duty® Weld Mount, 5,000 lb Load Limit
Hardware

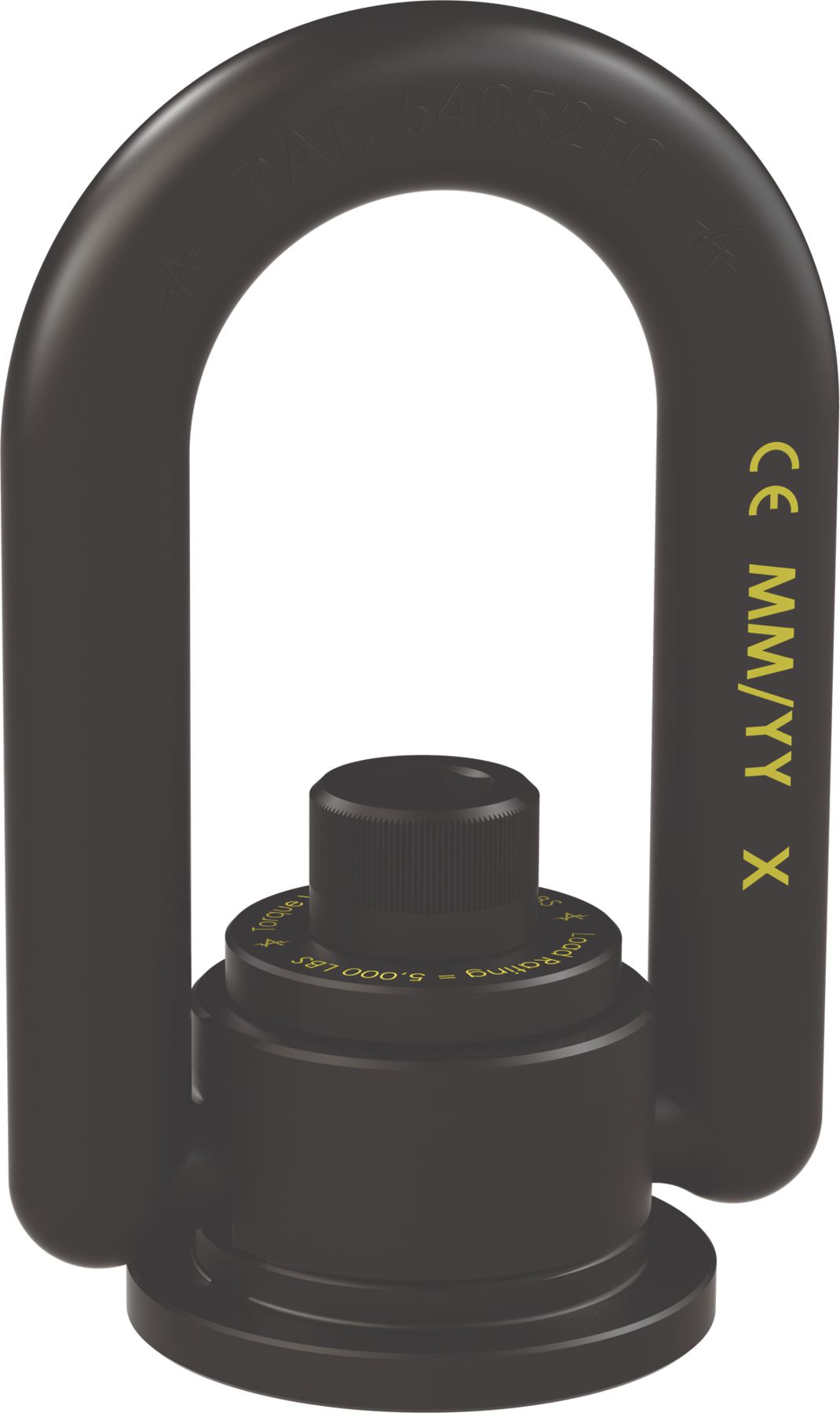

Hoist Ring, Heavy Duty® Weld Mount, 5,000 lb Load Limit
(Pack of 1.0)

American Drill Bushing®

• Swivel 360° and Pivot 180° Under Load
• Material: High strength 4140 alloy steel
• Safety Factor: 5:1
• Finish: Black Oxide per Mil C-13924B
• Magnetic Particle Inspected Per ASTM 1444

Read More

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


Unwelded Eye Bolt with Nut, Stainless Steel, 3/8" - 16, 500 lb WLL

Item#: 1427850

Turned Eyebolt, Stainless Steel, 3/8" x 4"

Item#: 1442186

Eyebolt, With Nut, Galvanized, 1/2" x 8"

Item#: 1442209

Hoist Ring, Heavy Duty®, 5,000 lb Load Limit

Item#: 58658

Universal Lift Ring, 1/2" to 3/4", 2,500 to 6,000 lb Load Limit

Item#: 1423467

Hoist Ring, Heavy Duty®, 4,000 lb Load Limit

Item#: 58657

AkroBin®, Blue, 10-7/8" x 4-1/8" x 4"

Item#: 1387529

ShelfMax™ Bin, Blue, 17-5/8" x 6-5/8" x 6"

Item#: 1387981

AkroBin®, Yellow, 5-3/8" x 4-1/8" x 3"

Item#: 1387515

Cable Tie 7.31" Black

Item#: 85487

Non-Chlorinated Brake Parts Cleaner 14oz

Item#: KT14126

Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 3/4"

Item#: 601

Product Description

• Swivel 360° and Pivot 180° Under Load
• Material: High strength 4140 alloy steel
• Safety Factor: 5:1
• Finish: Black Oxide per Mil C-13924B
• Magnetic Particle Inspected Per ASTM 1444

Technical Specifications

Item#: 1423435
Type Weld Mount
Material Alloy Steel
Finish Black Oxide
Working Load Limit 5,000 lb
Swivel 360 °
Pivot 180 °

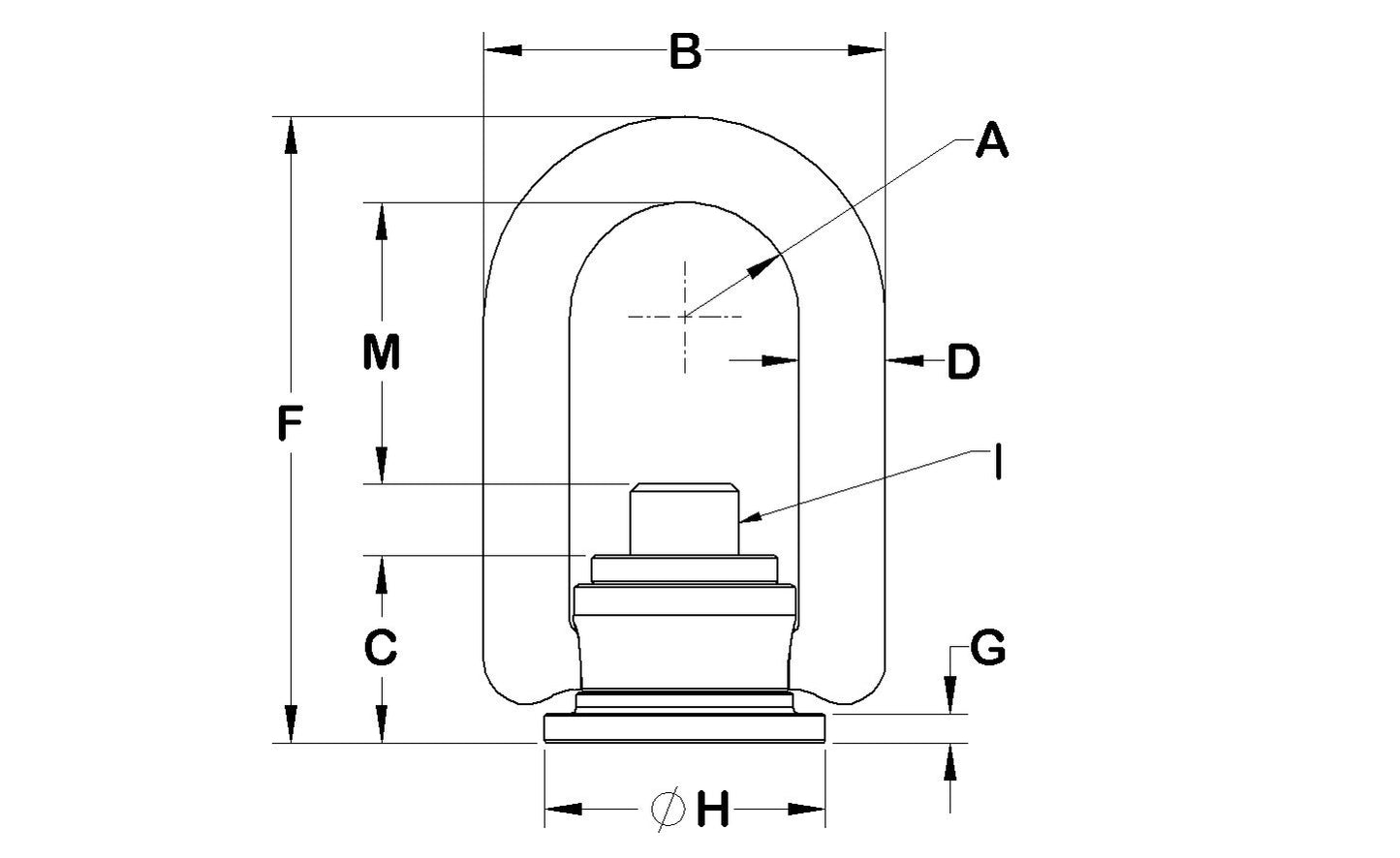

Dimension A 1.00 "
Dimension B 3.50 "
Dimension C 1.63 "
Dimension D 0.75 "
Dimension F 5.47 "
Dimension G 1/4 "
Dimension H 2.45 "
Dimension I 5/8-11 "
Dimension M 2.46 "
UNSPSC #: 24101602
TAA Compliant: Yes
Weight: 0.0 lb
